AD settings

This page allows to set up credentials for authentication on a remote AD-server. Here you can also set up groups of AD users allowed to authenticate in StaffCop admin panel with the credentials specified in AD. This helps to solve two tasks:

  • authentication on a remote AD-server in order to assign agent configurations based on user groups in Active Directory

  • allow access to StaffCop admin panel based on user groups in Active Directory

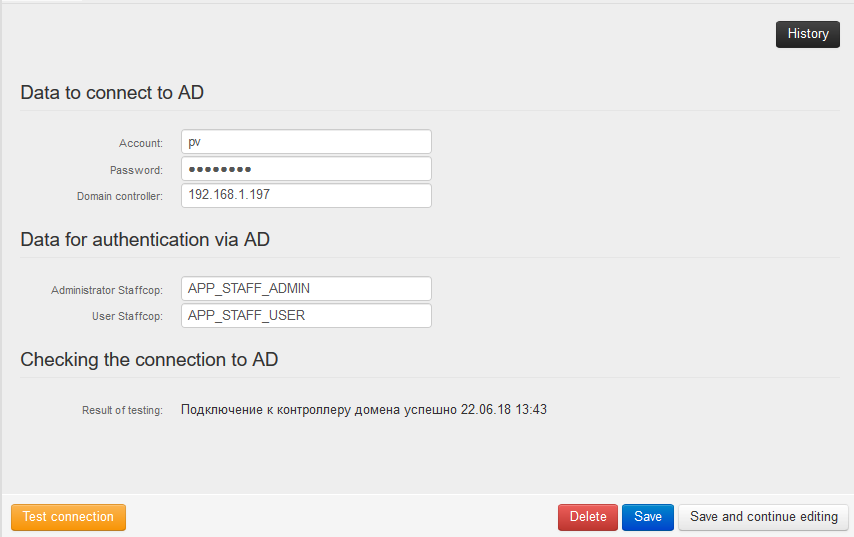

../../_images/adsync_1.png

Settings for connection to AD

Main settings for connection to a domain controller

  • User - login for authentication on a remote AD-server.

  • Password - password for authentication on a remote AD server.

  • Domain controller - ip-address of the domain controller.

Note

If SSL-connection is used, you should specify the IP-address and the domain controller separated by a comma.

  • Port - port for connection (389 without SSL).

  • SSL - enables SSL connection, requires port 636.

Settings for authentication with AD

The names of user groups in AD - for configuring the level of access to admin panel of Staffcop Enterprise.

  • Staffcop Administrator - the users of which will have administrative access to admin panel of Staffcop Enterprise.

  • Staffcop User - the users of which will have user access to admin panel of Staffcop Enterprise.

Check connection to AD

Displays the result of the last check of connection to AD-server: success or failure.

Work example

To assign Total control configuration to a user in Active Directory, in case the user’s workstation is in the staffcop_full_control group, do the following:

  • Specify Settings for connection to AD

  • In Total control configuration, in the Assign agents section, choose the AD Group variable and insert the line - staffcop_full_control there, then save the configuration.

  • Open the control panel for Users and Computers on the server of Active Directory and in the “Computers” group create a group named staffcop_full_control.

  • Find the name of the computer or computers to which you want to assign the Total control configuration and add it to the created group named staffcop_full_control.

  • Then, open the “Admin - Global Configuration” menu, and click “Save”.

In 1-2 minutes Total control configuration will be assigned to all workstations that belong to the Active Directory group named staffcop_full_control.
